315MHz 433MHz Receiver Module PT2272 Wifi Wireless Board

Popis

DIY Electronic ASK OOK TYJM01A-K PT2262 EV1527 SC5211 HS2240

315MHz 433MHz Prijímačský modul PT2272 Wifi Wireless Board

Popis:

Tento modul je určený pre bezdrôtovú komunikáciu pomocou RF frekvencií 315MHz alebo 433MHz. Je bežne používaný v aplikáciách diaľkového ovládania pre autá a iné zariadenia, ako aj na riadenie jednoduchých úloh, ako je zapnutie/vypnutie relé.

Technické parametre:

Source Code/Program

315MHz 433MHz Receiver Module PT2272 Wifi Wireless Board

Description:

This module is designed for wireless communication using RF 315MHz or 433MHz frequencies. It is commonly used in remote control applications for cars and other devices, as well as for controlling simple tasks such as relay on/off functions.

Specifications:

Module Specification:

• Transmitter:
  • Working voltage: 3V – 12V (max. power use 12V)
  • Working current: less than 40mA max, and min 9mA
  • Resonance mode: SAW (Surface Acoustic Wave)
  • Modulation mode: ASK (Amplitude Shift Keying)
  • Working frequency: 315MHz or 433MHz
  • Transmission power: 25mW (315MHz at 12V)
  • Frequency error: +150kHz (max)
  • Velocity: less than 10Kbps
• Receiver:
  • Working voltage: 5.0VDC ±0.5V
  • Working current: ≤5.5mA max
  • Working method: OOK/ASK (On-Off Keying/Amplitude Shift Keying)
  • Working frequency: 315MHz-433.92MHz
  • Bandwidth: 2MHz
  • Sensitivity: excellent, -100dBm (50Ω)
  • Transmitting velocity: <9.6Kbps (at 315MHz and -95dBm)

Note: The use of an optional antenna will increase the effectiveness of your wireless communication. A simple wire will suffice.

For detailed instructions on how to use the module with Arduino and to understand the Virtual Wire library, please refer to the original article.

Conclusion:

The 315MHz 433MHz Receiver Module PT2272 Wifi Wireless Board is a versatile and easy-to-use module suitable for various wireless communication projects. Whether you’re a hobbyist or a professional, this module offers reliable performance and flexibility for your applications.

Špecifikácie modulu:

• Vysielač:
  • Pracovné napätie: 3V – 12V (maximálne 12V)
  • Pracovný prúd: menej ako 40 mA max, a minimálne 9 mA
  • Rezonančný režim: SAW (Povrchová akustická vlna)
  • Modulačný režim: ASK (Amplitúdna posunová modulácia)
  • Pracovná frekvencia: 315 MHz alebo 433 MHz
  • Vysielačný výkon: 25 mW (315 MHz pri 12V)
  • Chyba frekvencie: +150 kHz (max)
  • Rýchlosť: menej ako 10 Kbps
• Prijímač:
  • Pracovné napätie: 5,0 VDC ±0,5 V
  • Pracovný prúd: ≤5,5 mA max
  • Pracovná metóda: OOK/ASK (On-Off Keying/Amplitúdna posunová modulácia)
  • Pracovná frekvencia: 315 MHz – 433,92 MHz
  • Pásma: 2 MHz
  • Citlivosť: vynikajúca, -100 dBm (50Ω)
  • Rýchlosť prenosu: <9,6 Kbps (pri 315 MHz a -95 dBm)

Poznámka: Použitie voliteľnej antény zvýši účinnosť vášho bezdrôtového spojenia. Jednoduchý drôt bude postačovať.

Pre podrobné inštrukcie, ako používať modul s Arduino a porozumieť knižnici Virtual Wire, sa odkazujem na pôvodný článok.

Záver:

315MHz 433MHz Prijímačský modul PT2272 Wifi Wireless Board je univerzálny a jednoducho použiteľný modul vhodný pre rôzne bezdrôtové komunikačné projekty. Bez ohľadu na to, či ste nadšenec alebo profesionál, tento modul ponúka spoľahlivý výkon a flexibilitu pre vaše aplikácie.

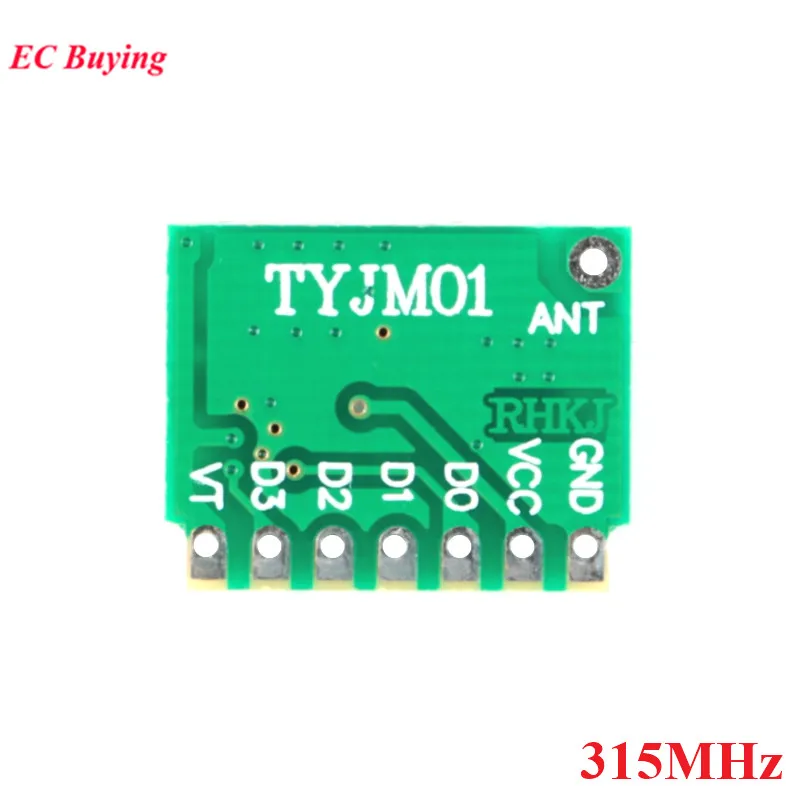

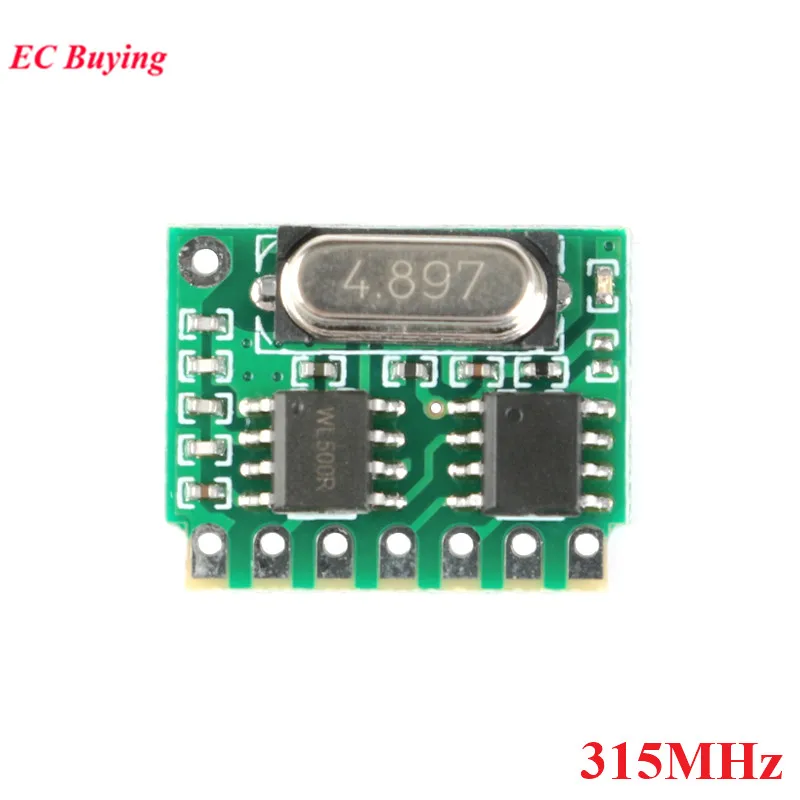

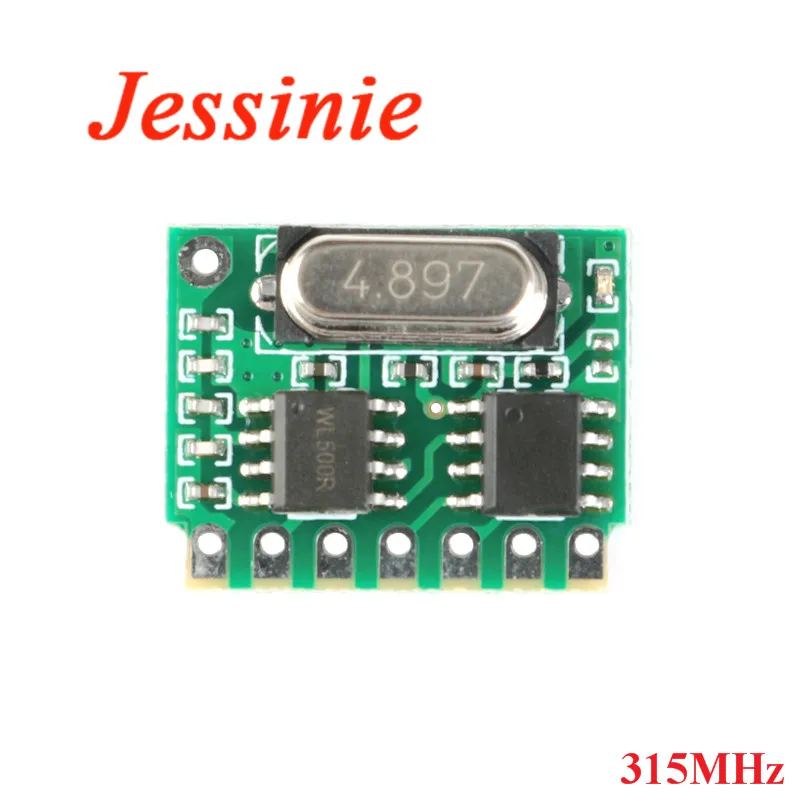

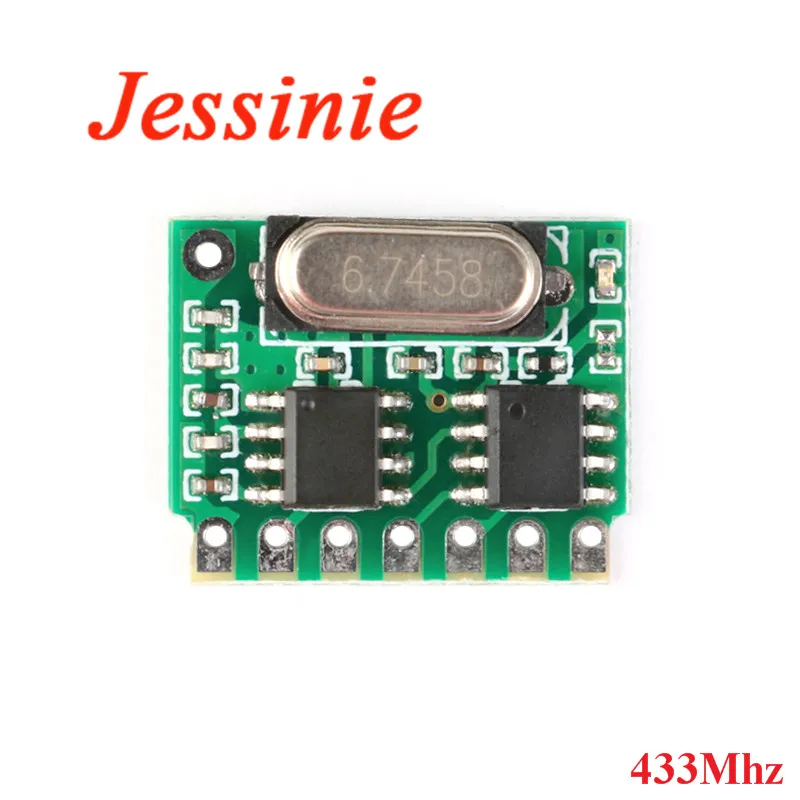

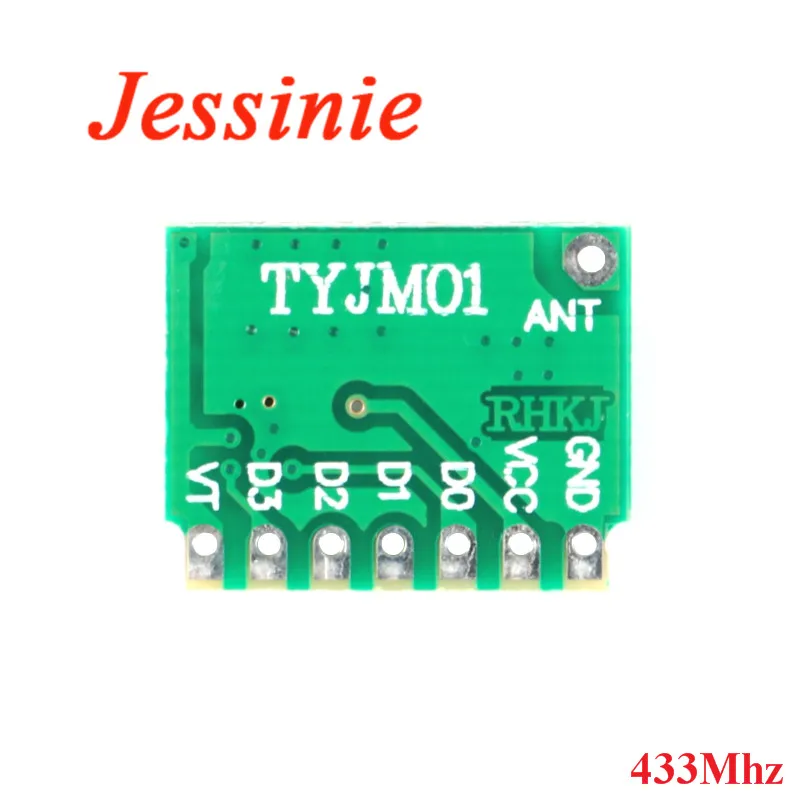

433MHz learning receiving and decoding module TYJM01L supports PT2272-L4 latch mode

jeden mam 315 mhz a druhy je 433mhz,

• Intelligent identification chip type, support EV1527, PT2262 learning code / fixed code (welding code) IC remote control mixed use
• Compatible with most learning codes and fixed code (weld code) chips on the market, including EV1527, PT2262, HX2262, SC2260, SC5211, HS2240, etc.
• Intelligently adapts to the oscillation resistance of the transmitting end, without considering the oscillation resistance of the transmitting end, and has strong versatility and is more convenient to use.
• Good local oscillator radiation suppression ability, multiple modules can work together and will not interfere with each other, does not affect the receiving distance

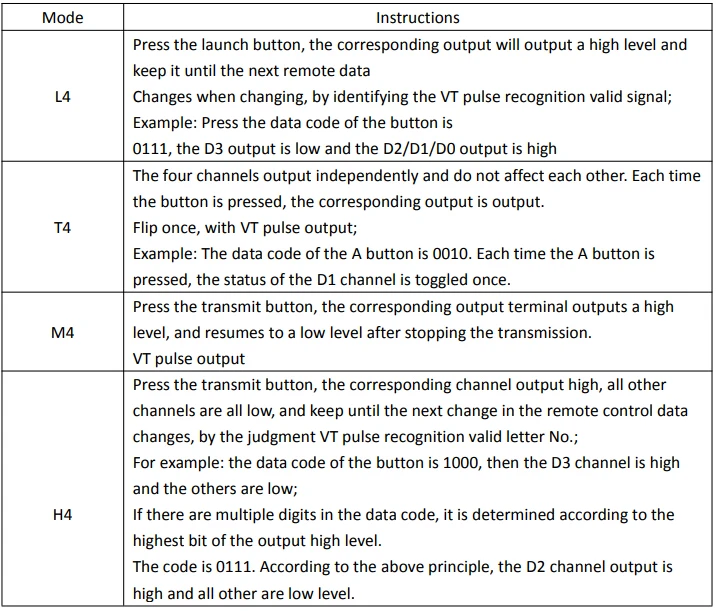

• TYJM01A-K supports four modes of operation: Latch, L4, T4, M4, and H4.
• Learning and mode conversion through the learning button trigger

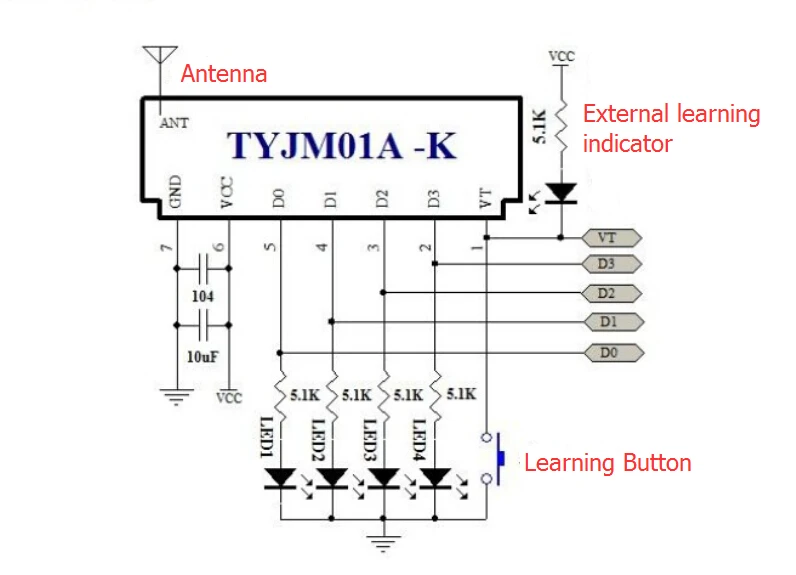

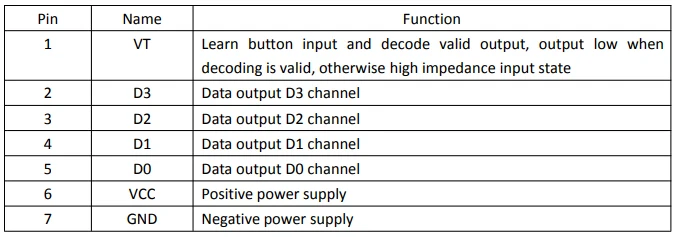

• Supports 4 outputs, the module comes with learning indicator and VT data valid indication, the operation is more intuitive and convenient
• Decoder chip built-in EEPROM, support up to 32 sets of remote control memory
• Wide operating voltage range: 2V ~ 5.5V

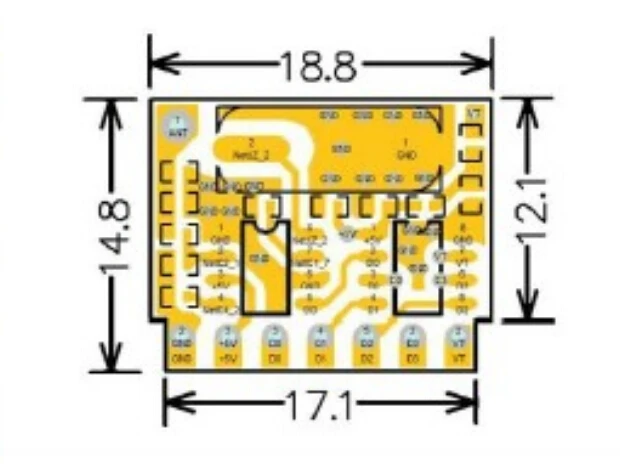

• Module size: 18.8X14.8X5mm, small size, easy installation

• In the pulse data string of each frame learning code (eg, EV1527) or fixed code (eg, PT2262),
• It consists of two parts: the address code and the data code. In general, in the same remote control, the address code of each key is the same, and the data code for each key is different;
• In the TYJM01A-K module, after learning, the module only memorizes the address code of the remote control button and does not memorize the data code of the button;

• The module can intelligently identify the learning code or fixed code, and extract the address code from the received data to be compared with the address code stored in the EEPROM. If the same, the corresponding output mode is correspondingly output according to the received data code.

• Industrial remote control products, etc.
