Popis

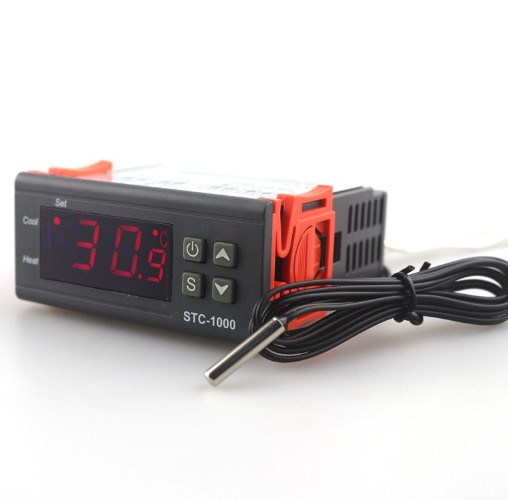

Digitálny regulátor teploty Termostat Termoregulátor inkubátor Relé LED 10A Kúrenie Chladenie STC-1000 12V
Ketotek STC-1000 digitálny regulátor teploty Termostat Termoregulátor pre inkubátor Relé LED 10A 2 stupne Kúrenie Chladenie 110V 220V 12V 24V napájanie
Prepínajte režimy medzi chladením a teplom;
Ovládanie teploty nastavením hodnoty nastavenia teploty a hodnoty rozdielu;
Kalibrácia teploty;
Ochrana pred oneskorením výstupu riadenia chladenia;
Alarm pri prekročení teploty alebo pri chybe snímača.
Všetky nastavenia parametrov je možné uložiť po vypnutí.
Môže byť použitý pre domáce mrazničky, chladničky, priemyselné chladiče, parníky, priemyselné zariadenia a iné aplikácie na reguláciu teploty.
Code | Function | Set Range | Default |
F1 | Temperature set value | -50.0~99.9°C | 10.0°C |
F2 | Difference set value | 0.3~10.0°C | 0.5°C |
F3 | Compressor delay time | 1~10 minutes | 3 minutes |
F4 | Temperature calibration value | -10.0°C~10.0°C | 0°C |
STC-1000 | ||
Modes | Heating and Cooling | |
Display | ° C | |
High temperature alarm limit setting | NO | |
Temperature measuring range | ||
Return difference Value: | 0.3~10.0°C | |
Resolution | 0.1 ° C | |
Accuracy | +/- 1° C (-50 ° C ~ 70 ° C) | |
Power supply | 12VDC | |
Power Consumpption | <3W | |
Output Relay | Two Relay Cool 10A/220VAC; Heat 10A/220VAC | |
NTC sensor | 1m | |
Delay start and temperature calibration | Yes | |
Size | 75mm(L)*34mm(W)*85mm(Depth) | |
Mounting Size | 71(L)*29(W)mm |
STC-1000 230VAC s 2m vodotesným senzorom, stabilnejší
